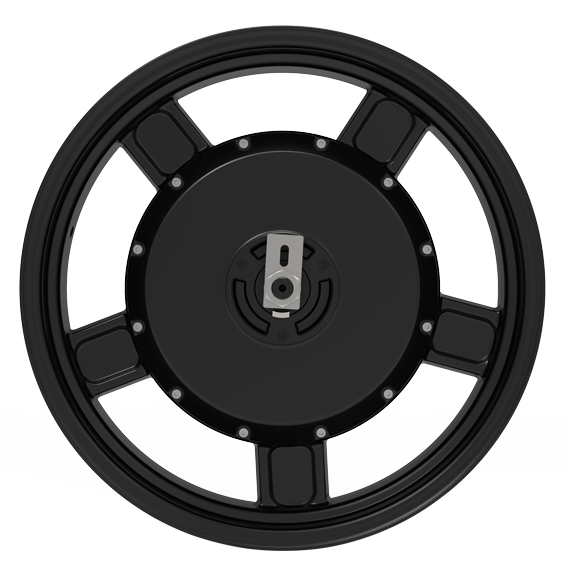

17寸電摩電機
金宇星——全球領先的電動輕型車電機專家
產品參數:
工作電壓(V): 60-96
額定功率(W): 1100-6000
峰值功率(W): 1300-6500
空載轉速: 600-900
額定轉速: 550-850
峰值扭矩(N.m): 100-200
峰值效率(%): 85-90
防護等級(IP): 54
絕緣等級: H
傳感器類型: 霍爾
制動器類型: 碟剎
最高行駛速度(Km/h): 60-100
Working voltage (V): 60-96
Rated power (W): 1100-6000
Peak power (W): 1300-6500
No-load speed (rpm): 600-900
Rated speed (rpm): 550-850
Peak torque (N.m): 100-200
Peak efficiency (%): 85-90
Protection level (IP): 54
Insulation level: H
Sensor type: Hall
Brake type: Disc brake
Maximum running speed(Km/h): 60-100
產品尺寸:
輪輞寬度: 89
輪輞材質: 鋁
輪胎裝置位置尺寸: 433.8
帶輪胎外徑:
電機軸軸長: 320
電機軸開檔:
電機軸出線方式: 斜出線
扁方尺寸: 14
電機軸螺紋尺寸: M18
Rim width: 89
Rim material: Aluminium
Mountiing position size of tyre: 433.8
Outer diameter of tyre included:
Motor shaft length: 320
Motor shaft drop out size:
Motor shaft outlet mode: Oblique outlet
Shaft flat size: 14
Motor shaft thread size: M18
