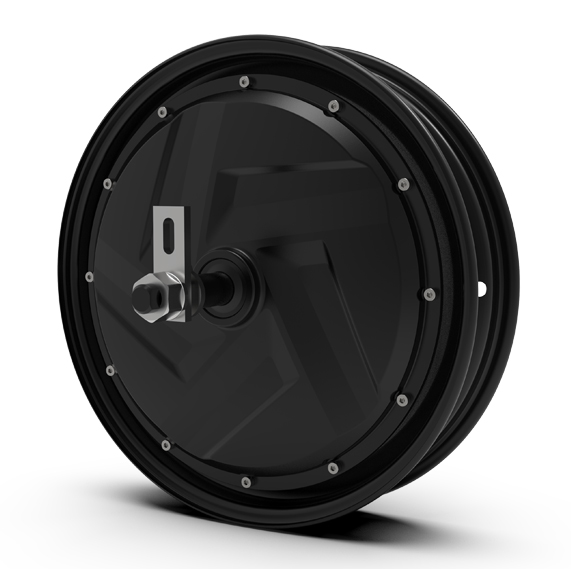

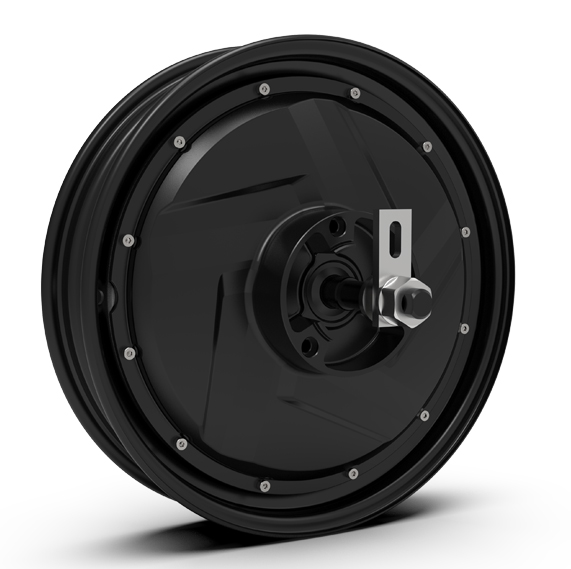

11寸電摩電機
金宇星——全球領先的電動輕型車電機專家
產品參數:
工作電壓(V): 60-96
額定功率(W): 800-3000
峰值功率(W): 3000-6000
空載轉速: 500-750
額定轉速: 450-700
峰值扭矩(N.m): 120-190
峰值效率(%): 85
防護等級(IP): 56
絕緣等級: B
傳感器類型: 霍爾
制動器類型: 鼓剎
最高行駛速度(Km/h): 40-60
Working voltage (V): 60-96
Rated power(W): 800-3000
Peak power(W): 3000-6000
No-load speed(rpm): 500-750
Rated speed(rpm): 450-700
Peak torque(N.m): 120-190
Peak efficiency(%): 85
Protection level(IP): 56
Insulation level: B
Sensor type: Hall
Brake type: Drum brake
Maximum running speed(Km/h): 40-60
產品尺寸:
輪輞寬度: 55
輪輞材質: 鐵
輪胎裝置位置尺寸: 278.6
帶輪胎外徑:
電機軸軸長: 270
電機軸開檔: 200
電機軸出線方式: 斜出線
扁方尺寸: 12
電機軸螺紋尺寸: M16
Rim width: 55
Rim material: Iron
Mountiing position size of tyre: 278.6
Outer diameter of tyre included:
Motor shaft length: 270
Motor shaft drop out size: 200
Motor shaft outlet mode: Oblique outlet
Shaft flat size: 12
Motor shaft thread size: M16
