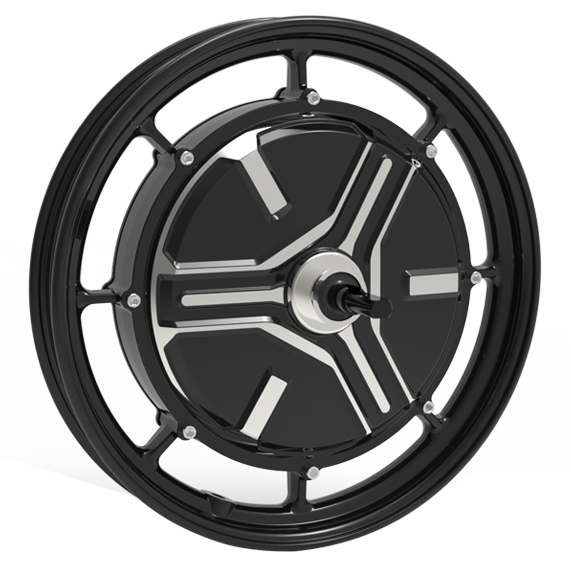

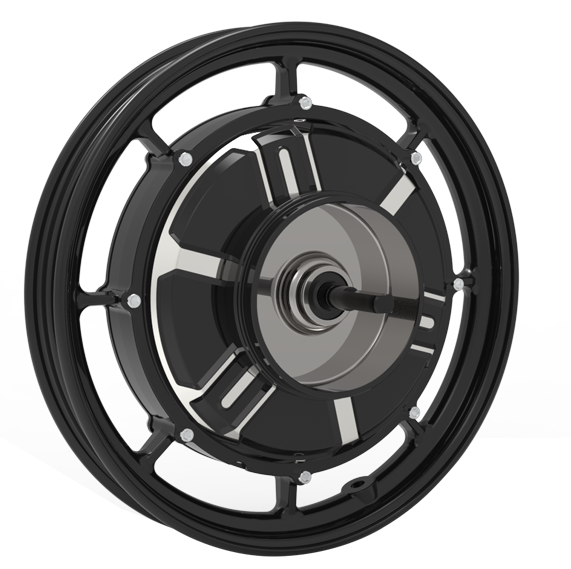

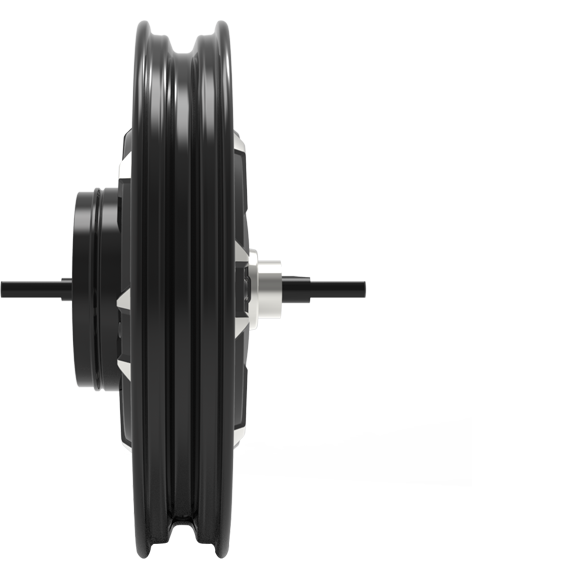

16寸輕量化國標款電機
金宇星——全球領先的電動輕型車電機專家
產品參數:
工作電壓(V): 48
額定功率(W): 400
峰值功率(W): 1000
空載轉速: 450
額定轉速: 400
峰值扭矩(N.m): 50
峰值效率(%): 85
防護等級(IP): 54
絕緣等級: B
傳感器類型: 霍爾
制動器類型: 鼓剎
最高行駛速度(Km/h): 32
Working voltage (V): 48
Rated power (W): 400
Peak power (W): 1000
No-load speed(rpm): 450
Rated speed (rpm): 400
Peak torque (N.m): 50
Peak efficiency (%): 85
Protection level (IP): 54
Insulation level: B
Sensor type: Hall
Brake type: Drum brake
Maximum running speed (Km/h): 32
產品尺寸:
輪輞寬度: 38
輪輞材質: 鋁
輪胎裝置位置尺寸: 304
帶輪胎外徑:
電機軸軸長: 220
電機軸開檔: 160
電機軸出線方式: 斜出線
扁方尺寸: 10
電機軸螺紋尺寸: M14
Rim width: 38
Rim material: Aluminium
Mountiing position size of tyre: 304
Outer diameter of tyre included:
Motor shaft length: 220
Motor shaft drop out size: 160
Motor shaft outlet mode: Oblique outlet
Flat square size: 10
Motor shaft thread size: M14
