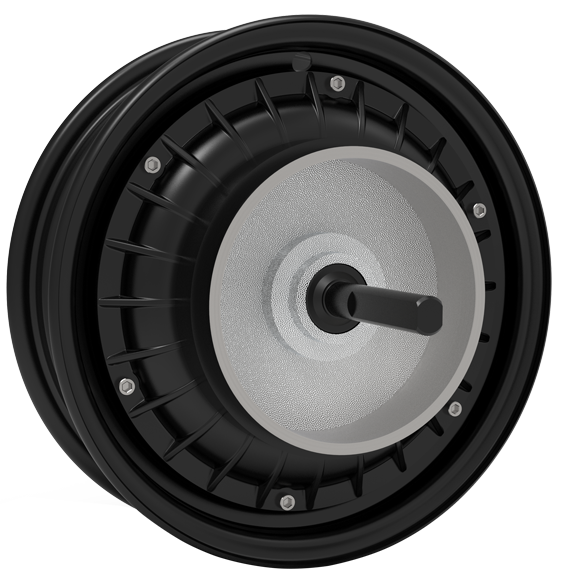

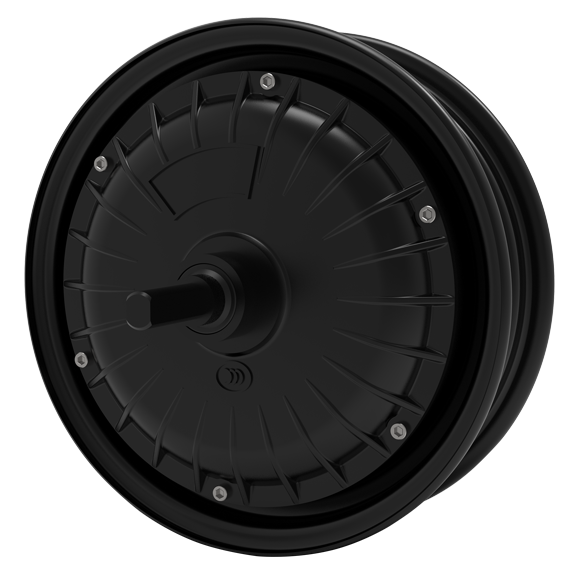

8寸電摩電機
金宇星——全球領先的電動輕型車電機專家
產(chǎn)品參數(shù):
工作電壓(V): 48-60
額定功率(W): 400-800
峰值功率(W): 900-1400
空載轉速(rpm): 450-550
額定轉速(rpm): 400-500
峰值扭矩(N.m): 60-80
峰值效率(%): 85
防護等級(IP): 54
絕緣等級: B
傳感器類型: 霍爾
制動器類型: 鼓剎
最高行駛速度(Km/h): 30-35
Working voltage (V): 48-60
Rated power(W): 400-800
Peak power(W): 900-1400
No-load speed(rpm): 450-550
Rated speed(rpm): 400-500
Peak torque(N.m): 60-80
Peak efficiency(%): 85
Protection level(IP): 54
Insulation level: B
Sensor type: Hall
Brake type: Drum brake
Maximum running speed(Km/h): 30-35
產(chǎn)品尺寸:
輪輞寬度: 55
輪輞材質: 鐵
輪胎裝置位置尺寸: 202.4
帶輪胎外徑:
電機軸軸長: 240
電機軸開檔: 170
電機軸出線方式: 斜出線
扁方尺寸: 10
電機軸螺紋尺寸: M14
Rim width: 55
Rim material: Iron
Mountiing position size of tyre: 202.4
Outer diameter of tyre included:
Motor shaft length: 240
Motor shaft drop out size: 170
Motor shaft outlet mode: Oblique outlet
Shaft flat size: 10
Motor shaft thread size: M14
